SC Machinery Automatic Storage System To Australia

Intelligent Automatic Storage System To Australia

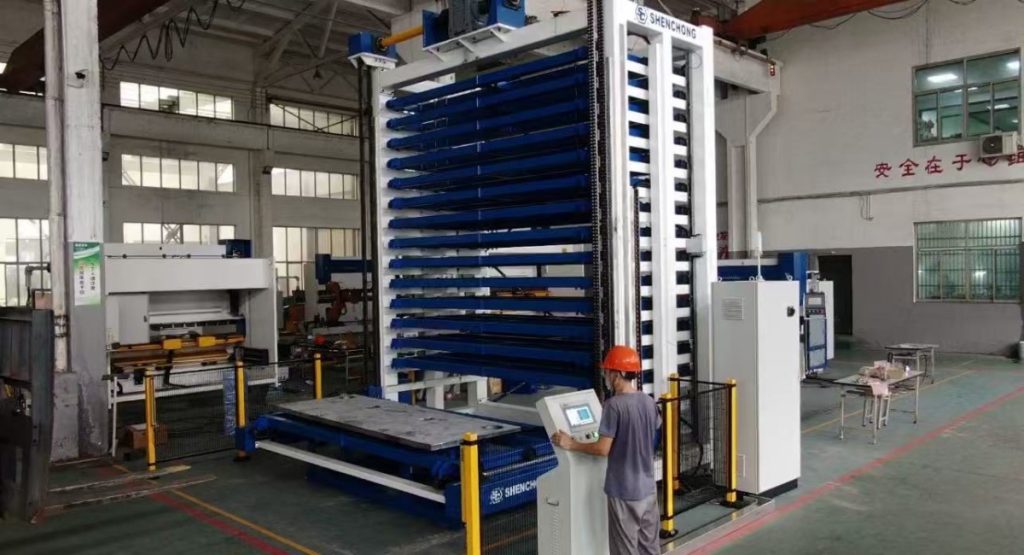

This automatic storage system to Australia with the model SC3015 -3T-15 has 15 layers, each layer has a height of 350mm and the load is 3T.

It adopts advanced foreign design concept and standard modular design. The shape is beautiful and the atmosphere is easy to install and debug on site. It consists of material library, an automatic loading and unloading system, and an electrical control system. Automated production of laser processing,

Material Tower

After processing by rectangular tube gantry milling machine, SC intelligent automatic storage system is assembled by two main side plates, and the whole machine is assembled by bolts. The number of layers is 15 layers, each layer has a height of 350mm and the load is 3T. The lower part of the plate is not equipped with wooden pallets to enhance the storage space of the plates and facilitate the positioning of the plates. When the material is replenished, the forklift or the vehicle is used with the loading positioning table to place the plate at the origin of the pallet. At the same time, the material management system automatically records the material specification, material number, quantity and other information, which is the basis for automatically picking up the plate. The sheet tray is stored by the hoist to the vacant position of the tower. When a certain size of sheet is required, the hoist automatically picks up the material from the corresponding location and exits the warehouse.

Hoist

The lifting device adopts double column design, lifting speed: 0-15 m/min; translation speed: 0-10 m/min; It consists of the motor and reducer on the top of the hoist, the bearing and the chain on the side of the column. Lift the material tray up and stop at any of the cargo racks in the tower and ensure that the pallet rails are docked between the two. The system accurately identifies the height position of each layer by means of a laser scanner. The translational conveying device completes the feeding and discharging by the driving mechanism installed on the hoisting machine, and drags the tray in the material tower into or out.

Roller Tray

The roller tray is formed by pipe welding, which can load 3T, finite element analysis of the pallet, and the positioning pin is mounted on the pallet for positioning of the material; the two sides of the tray have two U-shaped notches, and when the translation device moves, the profile pulls The block will hook the U-shaped notch on the tray to realize the tray access to the library.

Loading Positioning Table

The loading positioning table is welded by square tube and round bar to realize the support and positioning of the whole plate.

Intelligent Automatic Storage System To Australia Parameter

Srl. No.	Item	Specification
1	Plate size	3000*1500MM
2	Storage plate net height	350MM/layer (can be customized）
3	Storage layers	15th layers
4	Rated load	3T/layer
5	Vertical lifting speed	15M/min
6	Horizontally moving speed	10M/min
7	Repeat positioning accuracy	1MM
8	Control system of material library	Independent research and development
9	Operation method	automatic / manual
10	Total load of material library	45T
11	Vertically lifting motor power	11KW
12	Horizontally moving motor power	0.55KW
