Robotic Press Brake Machine

Robotic Press Brake Machine - SC SHENCHONG

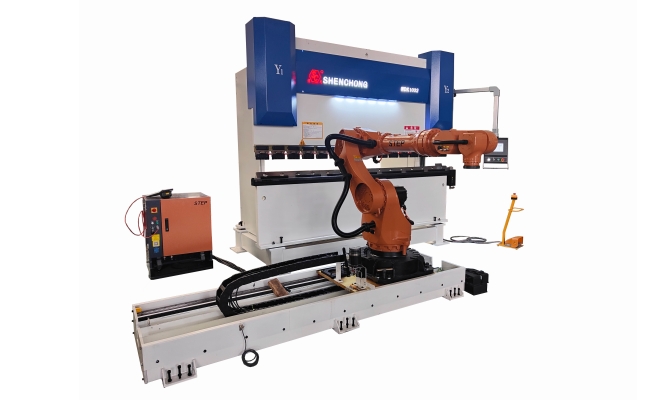

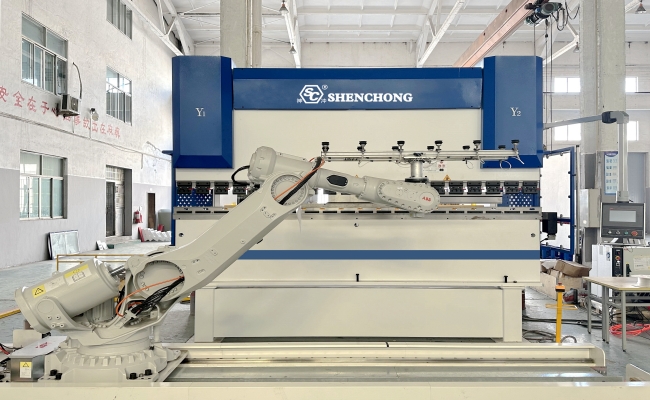

Robotic press brake machine is a CNC press brake that connect with bending robot to achieve full automatic bending function. SC SHENCHONG robotic press brake series can connect robot with hybrid servo press brake or CNC hydraulic press brake. We provide several different bending robot brands for customers to choose: ABB (Switzerland), KAWASAKI (Japan), STEP (China).

Robotic press brake is the most highest configuration choice in the current bending market. Our standard configuration for CNC press brake to connect with robot is 4+1 axis, CNC control the ram (Y1,Y2 axis), control the backgauge forward and back (X axis), control the backgauge up and down (R axis), control the table crowning (V axis). Of course, we will recommend suitable machine configuration for robotic press brake based on customers’ bending requirements.

Robotic Press Brake For Sale

Model	Nominal Pressure	Length of Table	Distance between housings	Throat Depth	Stroke	Open height	Main motor Power	Oil	Overall dimension	Weight
Model	kN	mm	mm	mm	mm	mm	KW	L	Lx W x H mm	T
40T/1300	400	1300	1000	250	160	400	5.5	130	183014302215	2
40T/1600		1600	1300						213014302215	2.8
40T/2000		2000	1500						253014302215	3.4
40T/2500		2500	2000						303014302215	4.2
63T/2000	630	2000	1500	320	160	400	7.5	200	254016402225	4.3
63T/2500	630	2500	2000	320	160	400		200	304016402225	4.8
80T/2500	800	2500	2000	400	160	410		290	305016502305	6
100T/2500	1000	2500	2000	400	200	450	11		306016902425	6.4
100T/3200		3200	2660						372016902475	7.3
100T/4000		4000	3200						450016902545	8.8
125T/2500	1250	2500	2000	400	200	450			308017602500	7.1
125T/3200		3200	2660						374017602535	8.2
125T/4000		4000	3200						452017602610	9.5
125T/6000		6000	4800						665019002950	13.5
160T/2500	1600	2500	2000	400	200	470	15	330	310018302520	8.7
160T/3200		3200	2660						376018302620	10.2
160T/4000		4000	3200						454018302720	11.4
160T/6000		6000	4800						660019502980	16
200T/3200	2000	3200	2660	400	200	470			376018802670	10.7
200T/4000		4000	3200						454018802770	12.2
200T/6000		6000	4800						660022003150	19
250T/3200	2500	3200	2660	400	250	490	18.5		378019802860	14.1
250T/4000		4000	3200						456019802960	16
250T/6000		6000	4800						660022503310	22
300T/3200	3000	3200	2660	400	250	500	22	540	380020803090	17.2
300T/4000		4000	3200						458020803090	19.5
300T/6000		6000	4800						660022503500	28
400T/4000	4000	4000	3200	400	300	605	30	900	458024603600	26
400T/5000		5000	4000						560024603750	30
400T/6000		6000	4800						660024603950	32

Robotic Press Brake Features

Due to the use of intelligent vision technology, the positioning precision of sheet metalbending is guaranteed, system control and debugging are simplified, and the dimensional accuracy of bending products is ensured. ²
Hybrid servo press brake machine + 7 th axis robot control system: The 7 th axis robotwith high speed, high precision and large angular motion range is very suitable for bending applications. ²
Through the sheet thickness measurement system and the bending servo system, theclosed-loop control system of the robot bending unit ensure the high precision bending quality of the product.
CNC Press brake machine cooperates with the robot to automatically process themetal sheet, and is equipped with accessories such as centering table and turning table to meet the needs of automatic bending technology. ²
Routine includes:Retrofit of the press brake rear gear, fixture, turning table, centering table, magnetic separator (or mechanical separator), safety guards, seventh axis (optional)

Robotic Press Brake Advantages

Reduce labor costs, reduce labor working intensity, and robots can work 7×24 hours aday to improve productivity. ²
There is no potential safety hazard, excellent consistency of the workpiece precision.
Since the robotic press brake is edited by the programming, compared with manual bending, robot press brakes improve consistent bending accuracy.
Automatic bending unit provides a relatively low-cost opportunity to try intelligent sheet metal production.

Robot Brands

ABB Robot Parameter

Model	Grab Weight (kg)	Max. Working Radius (mm)	Repeat Position Accuracy (mm)
IRB6700-150	150	3200	0.05
IRB6700-200	200	2600	0.05
IRB6700-300	300	2700	0.05
IRB7600-340	340	2800	0.08
IRB7600-500	500	2550	0.08

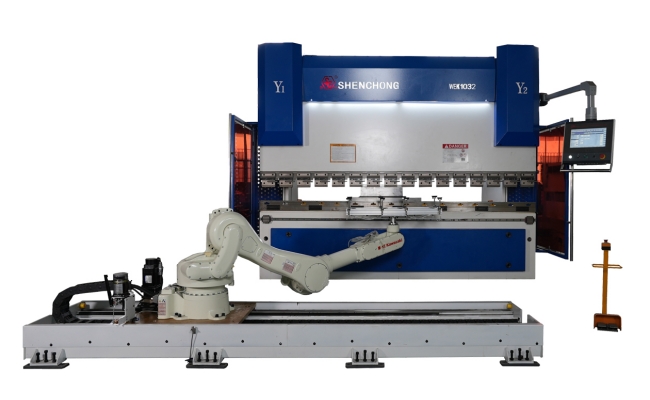

KAWASAKI Parameter

Model	Grab Weight (kg)	Max. Working Radius (mm)	Repeat Position Accuracy (mm)
RSO20N	20	1725	±0.04
RS050N	50	2100	±0.06
RSO8ON	80	2100	±0.06

STEP Parameter

Model	Grab Weight (kg)	Max. Working Radius (mm)	Repeat Position Accuracy (mm)
SR20/1700	20	1718	±0.05
SR60/2280B	60	2281	±0.1
SR90/2280B	90	2281	±0.1
SR165/2580	165	2586	±0.25

SC SHENCHONG Robot Press Brake Configuration

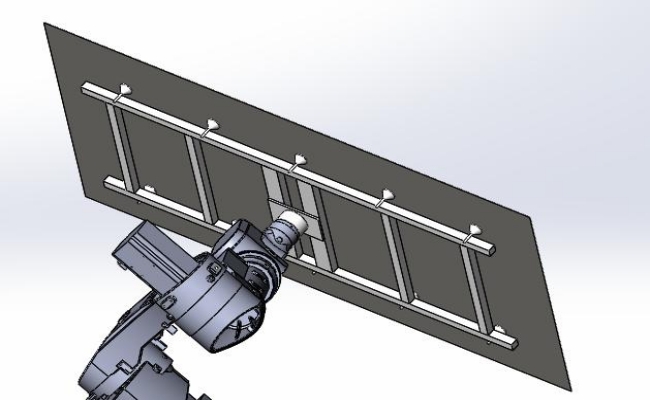

Gripper

Customize the grippers based on the workpieces.

Standard provide 2 sets of gripper.

Feeding Table With Magnetic Separator

The magnetic separator is a piece of iron plate that uses the principle of magnetic pole line division to adhere to a thick oil or irregularly shaped iron piece (the material is iron, nickel, cobalt, that is, a metal that can attract the magnet), and is quickly separated.

To ensure that the surface of the sheet is smooth and seamless, and then use the suction cup or robot to transport the iron sheet material to the specified position for processing and automation. The operation is simple, convenient to use, and saves time, labor, and cost. Better work efficiency.

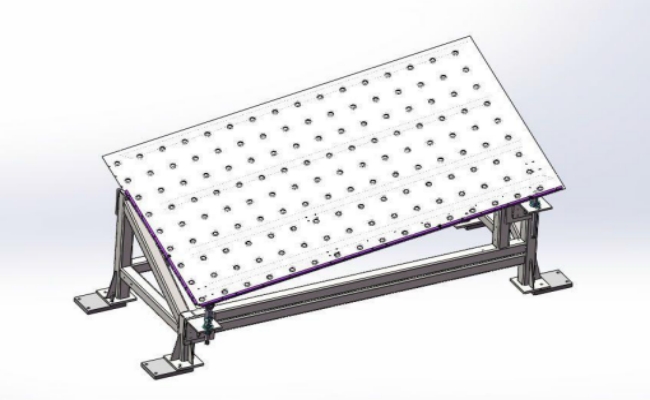

Centering Position Control System

After the manipulator to the raw material area absorbs the sheet material and mechanically stratifies, the single sheet material is placed on the centering table to be positioned by the sheet material.

The table top is tilted to facilitate automatic alignment of the product.

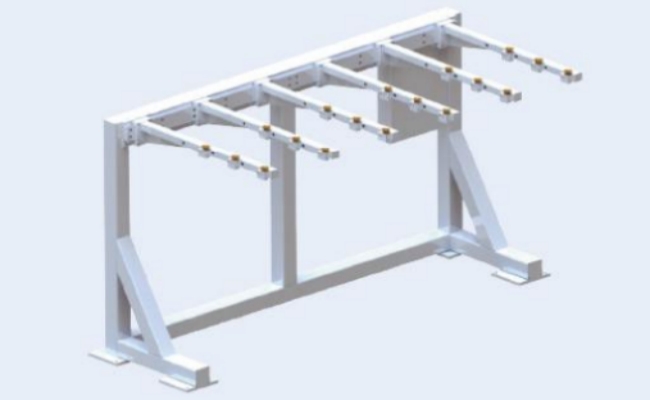

Turntable

The robot places the workpiece that needs to be turned over on the front suction cup, and then grabs the workpiece from the reverse side.

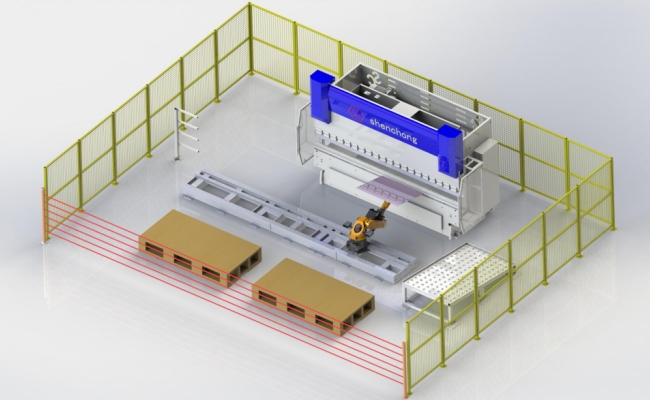

Robot Bending Application

As the latest bending solution, one popular tend is use robot bending in full automatic sheet metal processing production line. Also, customers always choose robotic press brake unit to bend batch production of workpieces.

Why choose SC?

Professional Robot Press Brake Factory

As a robotic press brake manufacturer, SC SHENCHONG our own automatic bending engineers to provide you with customized robotic press brake machine proposal, including design special press brake tools, customized grippers, equipment layout… We have our own robot adjustment engineers to help you install the machine and provide systematic training. We do not use outsourced teams and so customers do not need to wait for service.

Experienced Engineer Team and Numerous Customer Cases

SC SHENCHONG has experienced robotic bending design engineers and robotic adjustment engineers who can provide quick response service for customers. We do not use outsource robotic design and adjustment team that means our engineers know very well about our own machines and robots, and so we can offer more professional design and service.

Frequently Asked Questions

Why choose Shenchong robotic press brake machine?

Shenchong is one of the top 5 CNC hydraulic press brake brands from China with full experience in exporting and excellent global market reputation. Shenchong press brake for sale has ISO9001, CE and all other certifications as quality trust endorsement.

We have produced robot press brake machine for more than 10 years and have rich experience in install and adjust the robot.

Direct factory price and experienced over-sea after sales team not only provides best robot press brake price but also eliminate customers’ concerns about any bending machine problems.

How to get a robotic press brake machine quotation from SHENCHONG?

Every customer can get direct CNC robotic press brake price from us. Shenchong is one of the top press brake manufacturers, and we can offer you detailed technical proposal and price. Please provide us your plate material type, max thickness, max width, and workpiece drawings.

Do you have installation and training service for CNC robot press brake machine?

Yes, Shenchong is a reliable China hydraulic robotic press brake manufacturer with full exporting experiences. Installation Services are available with all our machines. We dispatch technician to customer’s factory for installation and pre-operation of machines. (Customers need to pay the airfare, hotel, food and engineer fees.)
