Laser Welding Machine

A laser welding machine is a device that uses a concentrated beam of light (laser) to join materials together, typically metals or thermoplastics. The high-energy laser beam heats the material at the weld point, causing it to melt and fuse together as it cools. Laser welding is known for its precision, speed, and ability to create strong welds with minimal distortion, making it a popular choice in industries such as automotive, aerospace, medical device manufacturing, and electronics.

Key Features of a Laser Welding Machine:

1. Precision: The laser beam can be precisely controlled to weld small, intricate parts without damaging the surrounding areas.
2. Speed: Laser welding is much faster compared to traditional welding methods.
3. Minimal Heat-Affected Zone: The concentrated heat input means that the areas surrounding the weld are minimally affected, reducing the risk of warping or distortion.
4. Versatility: Laser welding machines can be used for a wide range of materials, including different types of metals, plastics, and even dissimilar materials.
5. Automation: Many laser welding systems are compatible with CNC or robotic systems, allowing for highly automated and efficient production processes.

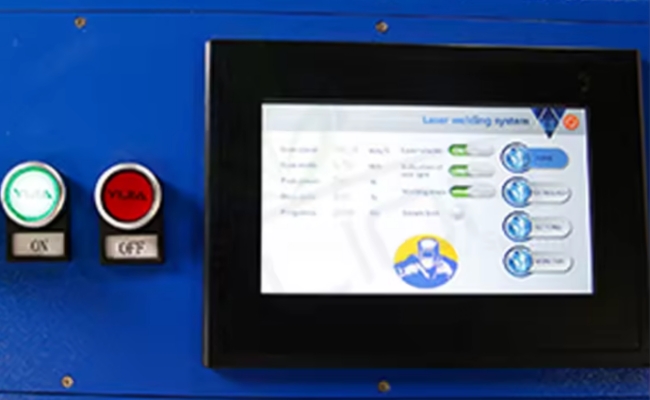

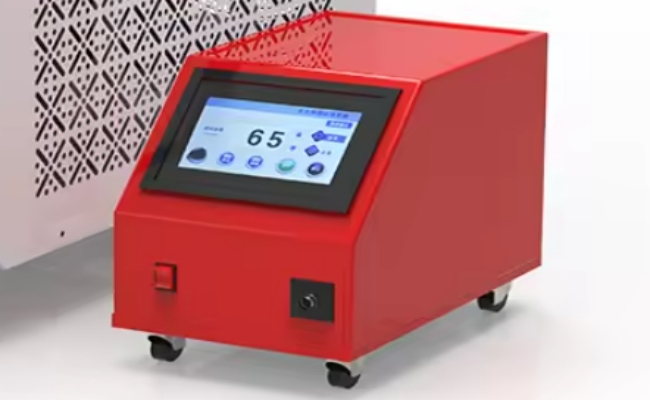

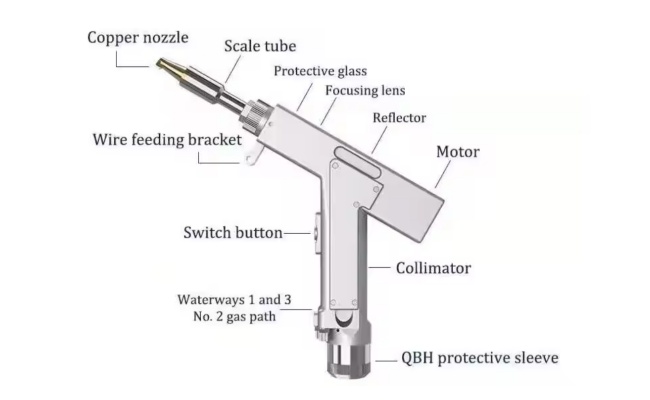

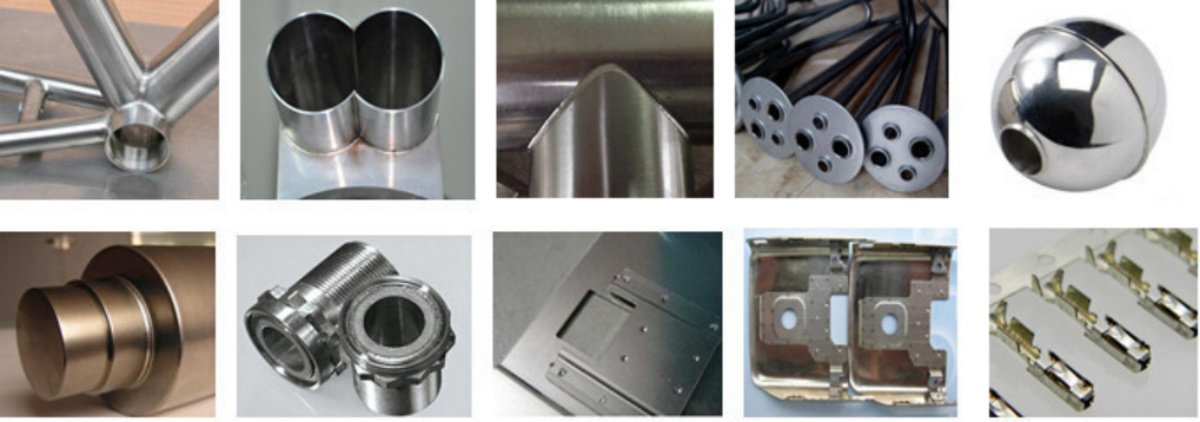

Laser welding is commonly used for high-precision applications like the production of medical devices, electronic components, and in the automotive industry for body panels and frames.

While laser welding machines offer many advantages, they also come with several disadvantages. Here are some of the main drawbacks:

1. High Initial Cost

• Equipment Expense: Laser welding machines are much more expensive than traditional welding equipment. The initial investment can be high due to the complexity of the system.
• Maintenance Costs: Laser systems may require specialized maintenance, adding to operational expenses.

2. Complexity

• Setup and Operation: Operating a laser welding machine requires skilled personnel who are trained in handling lasers, understanding the parameters, and maintaining safety standards.
• Limited Access to Some Geometries: It can be challenging to use laser welding for joints that are not easily accessible or require welding in confined spaces.

3. Material Limitations

• Reflective Materials: Certain metals like copper and aluminum can reflect the laser, making them harder to weld effectively.
• Thickness Limitations: Laser welding may not be the best option for very thick materials, as the penetration depth is limited compared to other welding techniques like arc welding.

4. Safety Concerns

• Laser Hazards: The intense light and energy from the laser pose risks such as eye damage or skin burns. Special safety measures, such as protective enclosures and eyewear, are required.
• Fumes and Gases: The welding process may release harmful fumes, requiring proper ventilation or extraction systems.

5. Sensitivity to Part Fit-Up

• Precision Required: Laser welding requires very precise alignment of the parts to be welded. Even slight gaps between parts can affect the weld quality, making the process less forgiving than other welding methods.

6. Energy Consumption

• Power Requirements: Laser welding machines can consume a significant amount of energy, especially when used in industrial settings, which may increase operational costs.

7. Limited Thickness

• Limited in Welding Thick Materials: While laser welding excels at thin and precision applications, it is less effective at welding very thick materials compared to traditional arc welding techniques.

These disadvantages make laser welding more suitable for specific industries and applications where precision, speed, and automation are critical, despite the higher costs and technical complexity.

The operating costs of a laser welding machine can be broken down into several key components. While laser welding is known for being efficient, the initial setup and ongoing operational expenses can be significant. Here’s a breakdown of the main factors contributing to the operating costs:

1. Energy Consumption

• Power Usage: Laser welding machines, particularly high-powered ones, require a substantial amount of electricity. The power consumption varies depending on the machine type and power output, but high-power lasers (e.g., fiber, CO2, or Ndlasers) tend to consume more electricity.
• Cooling System: The machine may need a cooling system, often water-cooled, which adds to the energy consumption. Maintaining the proper temperature is crucial for optimal operation.

2. Maintenance Costs

• Laser Source Maintenance: The laser source (whether fiber, diode, or CO2) has a limited lifespan and may require periodic maintenance or replacement. This could be a significant ongoing cost.
• Lens and Optics Cleaning/Replacement: The laser system’s lenses and optics can become dirty or damaged during operation, requiring regular cleaning or replacement to maintain optimal performance.
• Moving Parts and Alignment: If the system includes automated or CNC parts, motors, or robotic arms, these will require routine inspection and maintenance.

3. Consumables

• Assist Gas (if applicable): Many laser welding processes require the use of an assist gas like nitrogen, argon, or helium to protect the weld pool from oxidation. The cost of these gases can add up, particularly in high-volume production settings.
• Replacement Parts: Components such as laser diodes, mirrors, and fiber cables can degrade over time and need replacement, which increases operational expenses.

4. Labor Costs

• Operator Skill Level: Skilled operators are required to run and maintain laser welding machines. Training costs and the need for highly specialized personnel can increase labor expenses.
• Automation & Programming: If the machine is integrated into an automated system (CNC or robotics), skilled technicians are needed to program, operate, and monitor these systems.

5. Wear and Tear on Equipment

• Laser Source Wear: Over time, the laser generator itself may degrade, leading to reduced output and potentially costly repairs or replacement.
• Machine Downtime: If maintenance or repairs are required, machine downtime can result in lost productivity, indirectly contributing to operating costs.

6. Cooling System

• Chillers or Coolers: Most high-powered laser machines require a water-cooling system, which comes with its own operational cost. Cooling systems not only consume electricity but also require periodic maintenance.

7. Facility Costs

• Ventilation Systems: Laser welding generates fumes and gases that may require an effective extraction or ventilation system, increasing the cost of operation.
• Safety Measures: Additional costs may arise from implementing safety measures, such as protective barriers or eye protection systems, to ensure that operators are protected from the intense light and heat of the laser.

8. Depreciation and Amortization

• Machine Depreciation: Given the high initial investment, businesses will factor in depreciation over the lifespan of the machine. This becomes an indirect cost to consider when calculating the machine’s return on investment (ROI).

Approximate Breakdown of Operating Costs:

• Energy consumption: This can vary but can be in the range of several dollars per hour, depending on machine power output.
• Maintenance & consumables: Typically, maintenance might be around 5–10% of the initial capital cost annually, with consumables such as optics and gases contributing additional costs.
• Labor: Skilled labor adds a few thousand dollars monthly, depending on the complexity of operation and the country or region.
• Assist gas: This can be a recurring cost depending on usage, potentially adding several hundred to thousands of dollars monthly.

Conclusion:

While operating costs vary based on the specific machine, application, and production environment, laser welding can be expensive compared to traditional welding methods. However, its speed, precision, and efficiency can lead to long-term savings, especially in automated or high-production environments.

Yes, laser welding often requires the use of gas, although the need and type of gas can depend on the specific application and material being welded. These gases, known as shielding gases or assist gases, serve several important purposes during the welding process:

Reasons for Using Gas in Laser Welding:

• Protection Against Oxidation: Shielding gases, such as argon, nitrogen, or helium, are commonly used to protect the weld pool from exposure to the air. This helps prevent oxidation or contamination of the weld, which can weaken the joint or cause defects.
• Improved Weld Quality: Using gas can enhance the quality of the weld by reducing porosity, preventing spatter, and helping the laser interact more effectively with the material.
• Increased Penetration and Efficiency: Certain gases, like helium or nitrogen, can help increase the energy transfer from the laser to the material, improving weld penetration and the overall efficiency of the process.
• Cooling of Weld Zone: The gas can also help cool the weld zone, particularly when working with sensitive materials or when welding at high speeds. This prevents overheating and reduces the risk of warping or deformation.
• Removal of Molten Material: In some applications, gas assists in clearing molten metal or debris from the weld area, ensuring a cleaner and more precise weld.

Common Types of Gases Used in Laser Welding:

• Argon: A commonly used inert gas that provides excellent protection against oxidation. It’s often preferred for welding metals like titanium, stainless steel, and aluminum.
• Helium: Another inert gas, helium is often used when deep penetration or high heat input is needed. It is more expensive than argon but provides better weld quality for certain materials.
• Nitrogen: This gas is sometimes used when welding materials like stainless steel and some aluminum alloys. It helps prevent oxidation and assists in cooling the weld zone.
• Oxygen (in small amounts): While not commonly used on its own, oxygen can be mixed with other gases to increase the laser’s interaction with the material, leading to more efficient welding. However, it must be used carefully to avoid oxidation.

Situations Where Gas May Not Be Needed:

• In some laser welding applications, particularly high-vacuum environmentsor where the material is not highly reactive, shielding gases might not be necessary.

However, for most practical applications, the use of gas is critical to ensure high weld quality, minimize defects, and protect the weld pool. The choice of gas depends on the material being welded and the specific requirements of the welding process.

Yes, laser welding is generally safe when appropriate safety measures and precautions are followed. However, it does come with several potential risks that need to be carefully managed to ensure a safe working environment. These risks are primarily related to the high-power laser, heat, and associated materials used during the welding process. Here are the key safety considerations and precautions for laser welding:

1. Laser Hazards

Eye Injuries: The laser beam is highly concentrated and can cause serious damage to the eyes, potentially leading to blindness. Direct exposure to the laser light, even from reflections, can be harmful.

• Precautions: Operators should wear protective eyewear designed to filter out the specific wavelength of the laser being used. Enclosures and barriers around the welding area can also prevent exposure to laser light.

Skin Burns: High-powered lasers can burn the skin upon contact, leading to injuries.

• Precautions: Operators should wear protective clothing, gloves, and follow strict safety protocols to avoid direct exposure to the laser beam.

2. Heat and Fire Hazards

High Temperatures: The laser generates intense heat, which can cause burns or fire hazards in the work area.

• Precautions: Fire-resistant materials should be used around the welding zone, and proper ventilation should be installed to prevent the buildup of heat or flammable gases. Fire extinguishing equipment should always be accessible.

3. Fumes and Gases

Harmful Emissions: Laser welding can produce fumes and gases, depending on the material being welded. Metals like stainless steel, zinc, or aluminum can generate hazardous fumes, which may pose health risks when inhaled.

• Precautions: Effective ventilation systems or fume extraction devices are necessary to remove harmful fumes and gases from the workspace. Operators may also need to wear respirators in some cases.

4. Material Hazards

Reflective Materials: Certain reflective materials, like aluminum or copper, can reflect the laser beam, potentially posing a hazard to nearby personnel or equipment.

• Precautions: Special coatings or designs can minimize reflections, and the use of appropriate shielding is essential.

5. Electrical Hazards

High Voltage: Laser welding machines require significant electrical power and often operate at high voltages. This presents a risk of electrical shock or equipment malfunction.

• Precautions: Electrical components must be properly insulated, and only trained personnel should handle electrical systems. Machines should be regularly inspected for any electrical faults.

6. Mechanical Hazards

Automated Systems: Many laser welding systems are integrated with CNC or robotic arms, which can pose risks of mechanical injury if proper safety protocols are not followed.

• Precautions: Safety interlocks, emergency stops, and proper training on using automated systems are important to prevent injury.

7. Noise

High Noise Levels: Some laser welding processes, particularly when combined with high-speed automation, can generate significant noise.

• Precautions: Ear protection may be required in environments with excessive noise levels.

8. Environmental Safety

• Ventilation: Proper ventilation is necessary to ensure that harmful fumes, gases, and heat do not build up in the workspace.
• Waste Management: Metal particulates or residues from laser welding must be properly disposed of to avoid environmental contamination.

9. Operator Training

• Importance of Training: Proper training is crucial for anyone operating a laser welding machine. Operators need to understand the risks and know how to handle the machine safely, use protective equipment, and respond to emergencies.

Summary of Safety Precautions:

• Protective Gear: Safety glasses, gloves, and flame-resistant clothing.
• Enclosures: Laser-safe barriers and shields to prevent exposure to laser light.
• Ventilation: Proper fume extraction and ventilation systems.
• Training: Operator certification and regular safety training.
• Fire Safety: Fire suppression systems and easily accessible fire extinguishers.
• Interlocks: Safety interlocks on automated systems and emergency stop buttons.

Conclusion:

Laser welding can be safe when the correct safety procedures and precautions are in place. The main risks—laser radiation, heat, fumes, and electrical hazards—are well understood, and many safety protocols have been developed to mitigate these dangers. Proper training, protective equipment, and adherence to safety standards are key to ensuring a safe laser welding environment.

Maintaining a laser welding machine is crucial for ensuring optimal performance, longevity, and safety. Regular maintenance can prevent costly breakdowns and extend the machine’s lifespan. Here’s a breakdown of the key maintenance tasks required for a laser welding machine:

1. Laser Source Maintenance

Cleaning the Optics (Lenses and Mirrors): The laser’s lenses, mirrors, and other optical components are essential for directing and focusing the laser beam. Over time, these can accumulate dust, debris, or material residues, reducing the machine’s efficiency.

• Task: Regularly inspect and clean the optics using appropriate cleaning solutions and soft, lint-free wipes.
• Frequency: Weekly or more frequently depending on usage.

Laser Alignment: Over time, the laser beam’s alignment may shift, causing inconsistent weld quality. Checking and adjusting the beam alignment ensures the laser hits the material at the correct point.

• Task: Verify and, if needed, adjust the laser’s alignment.
• Frequency: As needed or whenever you notice inconsistencies in the welding process.

Laser Source Replacement: Different types of laser sources (e.g., fiber, CO2, Nd) have varying lifespans and will eventually degrade, causing reduced power output.

• Task: Replace the laser source when it reaches the end of its operational life.
• Frequency: Varies by laser type but usually after thousands of operating hours (e.g., fiber lasers can last up to 100,000 hours, while others may need replacement sooner).

2. Cooling System Maintenance

Checking and Refilling Coolant: Laser welding machines often use a cooling system (water or air-cooled) to maintain optimal temperatures during operation. Low coolant levels or contaminated coolant can lead to overheating.

• Task: Check coolant levels and quality, and refill or replace the coolant as needed.
• Frequency: Weekly or as specified by the manufacturer.

Cleaning Filters and Heat Exchangers: Cooling systems often have filters or heat exchangers that remove heat from the laser system. These components can become clogged with dirt or debris, reducing cooling efficiency.

• Task: Clean or replace air filters and heat exchangers to ensure the cooling system functions properly.
• Frequency: Monthly or as required by system performance.

3. Assist Gas System Maintenance

Inspecting Gas Lines: Laser welding often uses assist gases (e.g., argon, helium, nitrogen) to protect the weld and improve weld quality. Leaks in the gas lines can affect weld performance.

• Task: Inspect and check gas lines for leaks or blockages.
• Frequency: Monthly or as needed.

Check Gas Supply Pressure: Inconsistent gas pressure can lead to poor welding results.

• Task: Regularly check and adjust gas supply pressure to ensure it meets the manufacturer’s specifications.
• Frequency: Before each operation or daily.

4. Electrical System Maintenance

Inspecting Electrical Components: Over time, electrical connections, cables, and components can wear down, leading to malfunctions or reduced performance.

• Task: Check electrical connections for wear, corrosion, or loose connections.
• Frequency: Monthly or whenever electrical issues are suspected.

Checking Power Supply: Laser welding machines require a stable power supply. Voltage fluctuations can affect performance and damage components.

• Task: Ensure that the machine is connected to a stable power source and check the condition of the power supply.
• Frequency: As needed or when performance issues arise.

5. Mechanical System Maintenance

Lubricating Moving Parts: If the machine has moving parts (e.g., CNC or robotic arms), these need regular lubrication to prevent wear and ensure smooth operation.

• Task: Apply the recommended lubricant to all moving parts.
• Frequency: Monthly or as per manufacturer recommendations.

Inspecting Motion Control Systems: Machines with robotic or automated features require regular inspection of gears, motors, and control systems to avoid failures.

• Task: Inspect and test the motion control systems for accuracy and function.
• Frequency: Quarterly or as needed.

6. Safety System Maintenance

Checking Safety Interlocks: Laser welding machines are often equipped with safety interlocks to prevent accidental exposure to the laser beam. These systems must function properly to ensure operator safety.

• Task: Test safety interlocks regularly to make sure they are working as intended.
• Frequency: Before each operation or monthly.

Inspecting Protective Barriers and Shields: Any barriers or shields designed to protect operators from the laser beam should be inspected for wear or damage.

• Task: Ensure that all safety shields and barriers are intact and properly positioned.
• Frequency: Weekly or as needed.

7. Software and Firmware Updates

Updating Control Software: Many modern laser welding machines use software or firmware for precise control. Manufacturers often release updates to improve performance or add features.

• Task: Update the machine’s software or firmware when new versions are available.
• Frequency: As updates are released.

Backing Up System Settings: Regular backups of machine settings ensure that configurations can be restored in case of failure.

• Task: Back up machine settings and configurations.
• Frequency: Monthly or after significant changes.

8. General Cleaning

Wiping Down the Machine: Regular cleaning of the machine’s external surfaces and workspace helps prevent dust, debris, and contaminants from affecting its performance.

• Task: Clean the machine exterior and keep the workspace tidy.
• Frequency: Daily or weekly, depending on usage.

9. Preventive Maintenance Checks

Scheduled Inspections: Routine inspections by qualified technicians are important for identifying potential issues before they become major problems.

• Task: Schedule preventive maintenance checks based on the machine manufacturer’s recommendations.
• Frequency: Typically semi-annually or annually.

Summary of Maintenance Tasks and Frequency:

• Daily/Weekly: Clean optics, check coolant levels, inspect gas lines, clean exterior.
• Monthly: Lubricate moving parts, inspect electrical components, check gas supply pressure, clean filters, and check safety systems.
• Quarterly/Annually: Perform detailed inspections, software updates, replace laser source or major components as needed.

Conclusion:

Regular maintenance of a laser welding machine ensures that it operates efficiently, safely, and with high weld quality. Preventive maintenance can minimize downtime and extend the lifespan of the equipment, making it a critical part of machine operation.
