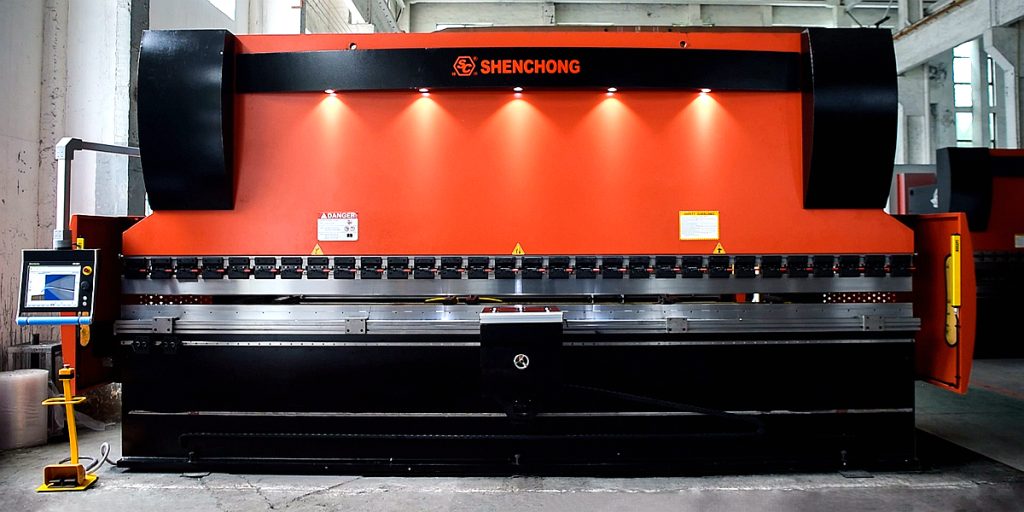

A French distributor ordered a SC CNC hydraulic press brake machine. France CNC Press Brake 200T 6000MM DA66T 6+1 Axis is a high-precision and high-efficiency sheet metal bending equipment, suitable for large metal sheet processing within 6 meters.
The equipment adopts Nederland DELEM DA66T CNC system, supports 3D visual programming, and has 6+1 axis control to ensure bending accuracy and production efficiency. It is widely used in sheet metal manufacturing, automobiles, aerospace, power equipment, building steel structure and other industries.
1. France CNC Press Brake Technical Parameters
- Bending force: 200 tons (2000 kN)
- Bending length: 6000 mm
- Control system: DELEM DA66T (3D graphics programming, touch screen)
- Number of axes: 6+1 axis
- Drive system: electro-hydraulic synchronization
- Column spacing: 4800mm
- Throat depth: 400mm
- Slider stroke: 200mm
- Opening height: 470mm
- Main motor: 15Kw
- Additional configuration: Equipped with follow-up support device
2. Advantages & Features of France CNC Press Brake 200T 6000MM DA66T 6+1 Axis
- DA66T CNC system
- Adopts DELEM DA66T from the Netherlands, supports 3D graphics simulation bending, intuitive and easy to operate.
- 15-inch color touch screen, supports USB/network connection, and can import CAD drawings.
- Automatically calculates bending angle and pressure, improves processing accuracy, and reduces trial bending time.
- High-precision hydraulic control
- Adopts independent control of Y1/Y2 axes to ensure bending accuracy of ±0.01mm.
- Servo motor + hydraulic proportional valve, high bending synchronization accuracy.
- 6+1 axis design
- Multi-degree-of-freedom control, suitable for bending of complex workpieces
- Y1/Y2 axis controls the independent movement of the left and right ends of the slider to ensure accurate bending.
- X axis (moving forward and backward) controls the back gauge to achieve precise positioning.
- R axis (moving up and down) controls the height adjustment of the back gauge to adapt to different plates.
- Z1/Z2 axis (moving left and right) improves the flexibility of the back gauge and supports multi-stage bending.
- V-axis (mechanical/hydraulic compensation) compensates for workbench deformation and improves bending consistency.
- Sturdy and durable body
- The overall welded structure, after high-temperature tempering treatment, is strong and not easy to deform.
- Suitable for long-term high-intensity operation to ensure the durability of the equipment.
- Intelligent compensation system
- V-axis mechanical/hydraulic compensation, automatic adjustment, eliminate bending errors.
- Improve bending consistency, suitable for high-precision sheet metal processing.
- Flexible backgauge system
- Multi-axis backgauge (X, R, Z1, Z2) supports complex workpiece bending.
- Optional servo electric backgauge to improve positioning accuracy.
- Built-in follow-up support device
- Reduce the work intensity of workers’ bending operations and improve safety
- Improve bending accuracy and work efficiency
- Protect the surface of the sheet to prevent scratches
3. Application fields
This CNC hydraulic press brake 200t 6000mm 6+1axis is suitable for bending metal sheets within 6 meters, and is mainly used in:
- Sheet metal processing industry
- Automobile manufacturing (frame, door, compartment)
- Aerospace (fuselage parts)
- Electrical cabinet, switch cabinet manufacturing
- Building steel structure
- Shipbuilding
- Household appliance shell (refrigerator, washing machine, cabinet)
4. Summary
- Precision: DA66T CNC + 6+1 axis control, high bending accuracy.
- Efficient: 3D touch programming + electro-hydraulic synchronization system to improve production efficiency.
- Stable: High-strength frame + V-axis compensation, no deformation after long-term work.
If you have specific needs, or need a quotation or other machine model, please consult further!
